Replace worn or damaged fabric on a compatible 13 ft roll-out caravan awning with a complete replacement fabric kit.
This RVSUNSHADES replacement awning fabric is supplied folded in a carton and finished in Grey Scale Stripes. It is manufactured from formulated four-layer, 15 oz grid vinyl for waterproof coverage and dependable outdoor use.
Will this fabric fit my awning?
This model is intended for a 13 ft roll-out awning measured from post to post. It is not designed for a box awning.
Do not select the fabric from your caravan length alone. Caravans of the same length can be fitted with different awning sizes. Measure your existing awning and fabric, then compare the figures below before ordering.
Product specifications
| Suitable awning size | 13 ft roll-out awning, measured post to post |
|---|---|
| Published fabric dimension | 12'2" (3.71 m) wide × 8' projection |
| Fabric width (W) | 12'2" (3.71 m ±0.05 m / ±50 mm) |
| Projection (Pj) | 8' nominal; 2.40 m to the flexible spline / 2.50 m to the fixed spline; tolerance ±0.05 m (±50 mm) |

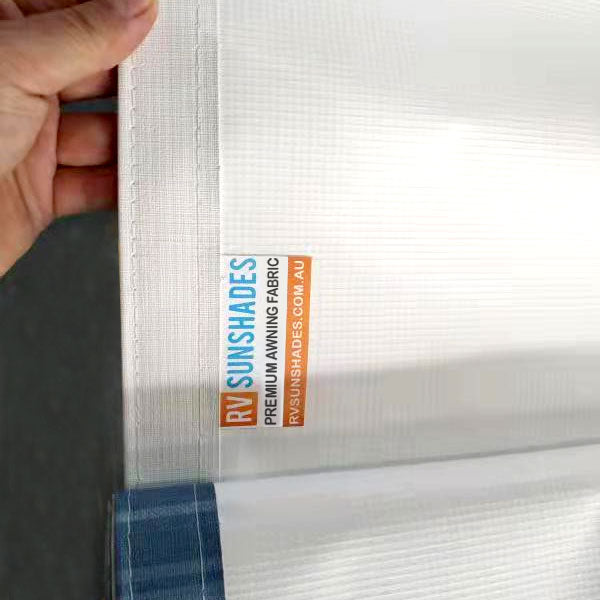

| Material | Formulated four-layer grid vinyl |
| Fabric weight | 15 oz |
| Colour and pattern | Grey Scale Stripes, single-side print |
| Product code | 13-BK-ST |
| Packaging | Folded and packed in a carton |
| Warranty | 18 months |
How to read the projection: Pj is the vertical distance from the top spline to the selected lower spline, measured above the valance. The published 2.40/2.50 m figures represent the flexible-spline distance / fixed-spline distance: 2.40 m to the flexible spline and 2.50 m to the fixed spline. The published ±0.05 m tolerance equals ±50 mm.
If your measurement is near a limit, contact RVSUNSHADES before ordering.
How to choose the correct size
- Measure the complete awning from mounting post to mounting post. This product suits a 13 ft post-to-post awning.
- Measure the existing fabric separately. Awning fabric is generally approximately 10 inches shorter than the awning—about 5 inches of allowance at each side for the awning structure, anti-flap bars and guide ropes.
- Confirm both width (W) and projection (Pj) using the sizing illustrations and specification table.
- Do not order by assumption if existing annex walls, panels or fittings must align with the replacement fabric.
- Contact RVSUNSHADES before purchase if any measurement or compatibility point is uncertain.

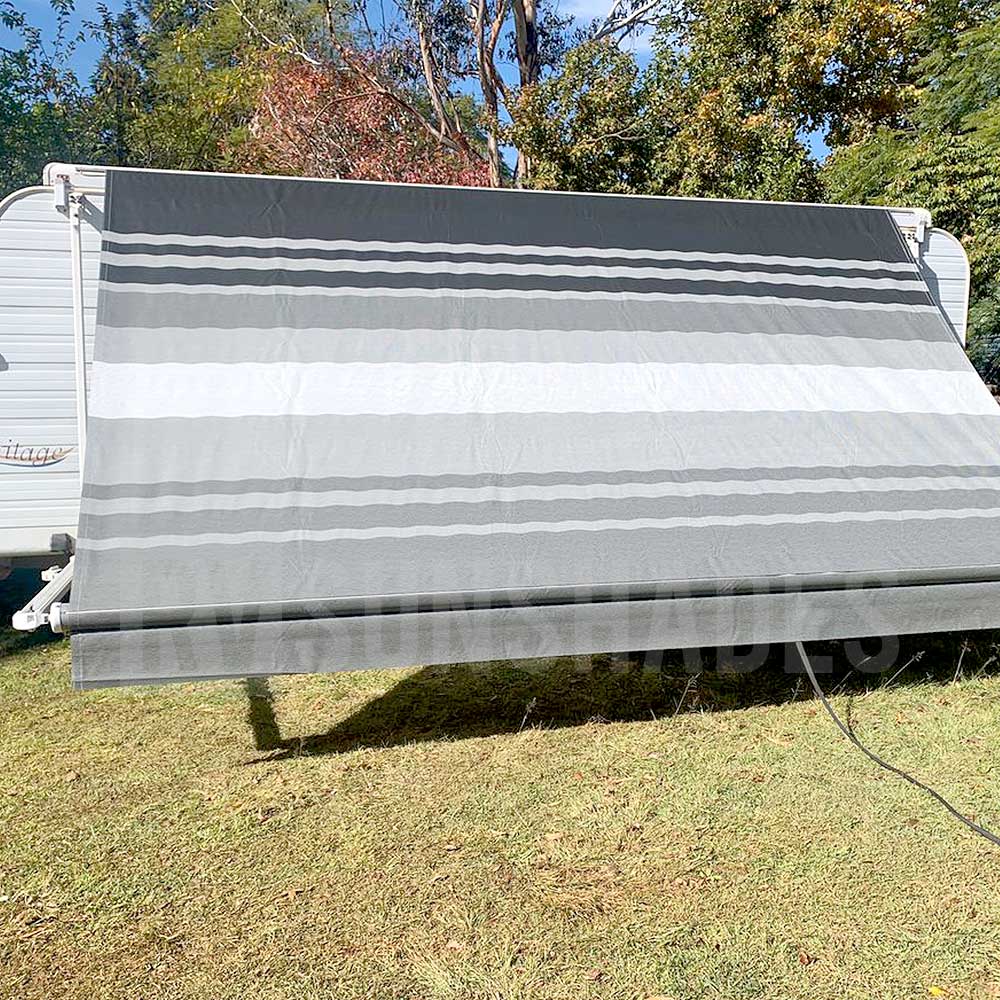

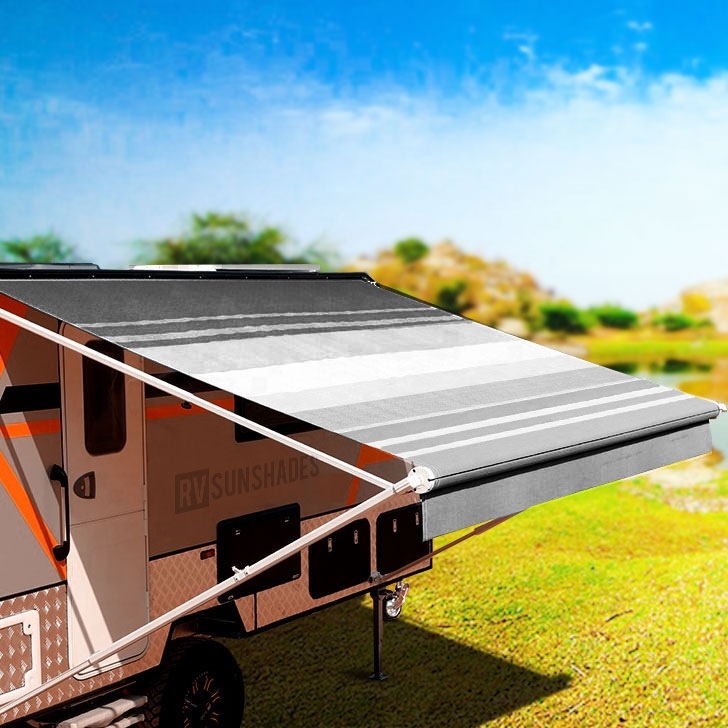

Selected colour: Grey Scale Stripes
The design is printed on one side. Other colours and patterns are sold in separate listings:
Features
- Four-layer, 15 oz grid vinyl construction
- Waterproof and sunproof
- Designed as replacement fabric for compatible roll-out awnings
- Available in multiple colours and patterns through separate listings
- Side channels can accommodate LED-light wiring by cutting the bottom layer
- 18-month warranty

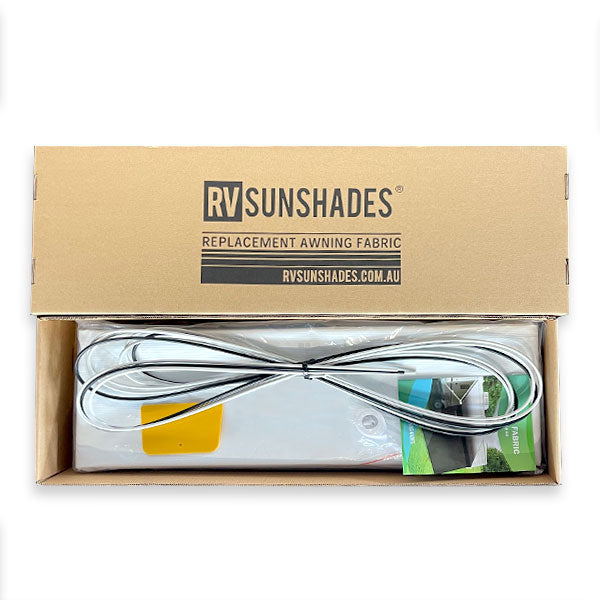

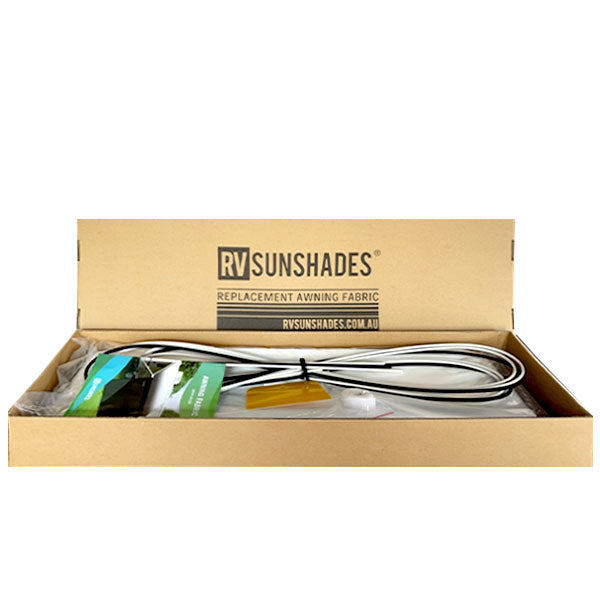

What's included?
- 1 × replacement caravan awning fabric
- Poly cords supplied in sections
- Poly-cord pusher
- Pulling strap
- User manual
Not included: Awning structure and any accessory not listed above.
Rolled vs boxed packaging
This listing uses boxed packaging.
- Rolled packaging: avoids deliberate sharp folds and is the preferred option for reducing fold-related risk. It requires a longer carton, so packaging and freight costs are higher.
- Boxed packaging: uses a smaller, lower-cost carton, but the vinyl is folded and may arrive with pronounced fold lines. Fold stress can occasionally contribute to small cracks or pinholes.
- Availability: rolled packaging is not offered for every size. Check the product title and packaging row above before ordering.
Our recommendation: Select a rolled-packaging listing when the required size and colour are available. If only boxed packaging is available, read the acknowledgement below before deciding whether to proceed.
Buyer acknowledgement and packaging-risk choice
The boxed-packaging issue and its associated risks are known and disclosed above. By proceeding with an order for boxed fabric after reading this disclosure, the buyer confirms that they have read, understood and accepted the packaging risks described above. If rolled packaging is unavailable and the buyer does not accept those risks, the buyer is not required to purchase and may choose not to proceed.
Australian Consumer Law: This acknowledgement records the buyer's packaging choice only. It does not exclude, restrict or modify any rights or remedies that cannot lawfully be excluded under the Australian Consumer Law.
Optional centre support cradle
An optional awning centre support cradle bracket can help support the awning barrel and reduce bowing through the middle. It is not included with this fabric kit.
Installation and care
- Protect the fabric during installation: Do not drag or shift it directly over concrete or another abrasive surface. Lay down a clean tarp first.
- Retract the awning in windy conditions: Repeated flapping can damage the fabric and cause premature ageing.
- Damage caused by installation on abrasive flooring or by extreme weather conditions is not covered by warranty.
Awning fabric installation videos
For installation reference, view our roll-out awning fabric replacement video tutorials. Follow the awning manufacturer's instructions and use a qualified installer if you are unsure.
Images are for reference. Confirm the listed dimensions, colour, packaging method and compatibility before purchase.
