Quick Overview

2x End Bars for Cassette Type Box Awning and Electric Awning (for end screens attachment)

1050/2570mm Twist Locking

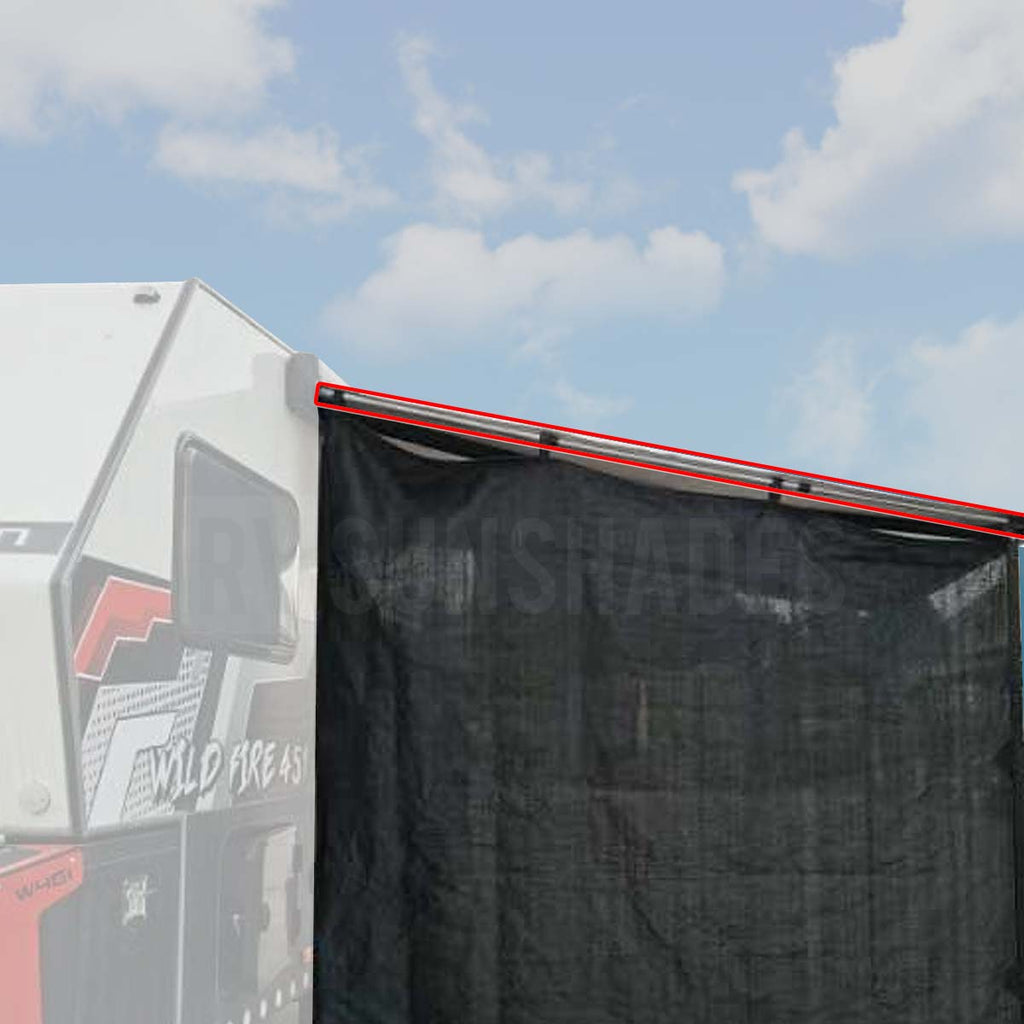

These end bars are specially designed for cassette-type box awnings and electric awnings where there is no bar to hand awning end screen for sun blocking and privacy protection. * These bars were designed for hanging end screens only. The strength is not suitable to attach anti-flap clamps.

Specifications:

• • Collapsed Length: 1050 mm
  • Extended Length: 2570 mm (max)
  • Locking: Twist lock adjustable
  • Material: Aluminium Tubes (25/21/18mm)
  • Attachment: Caravan body - hook+ bracket, Box Awning Profile - Socket, Electric Rollout Awning - Drill hole for end bar pin (6mm)

What's Included:

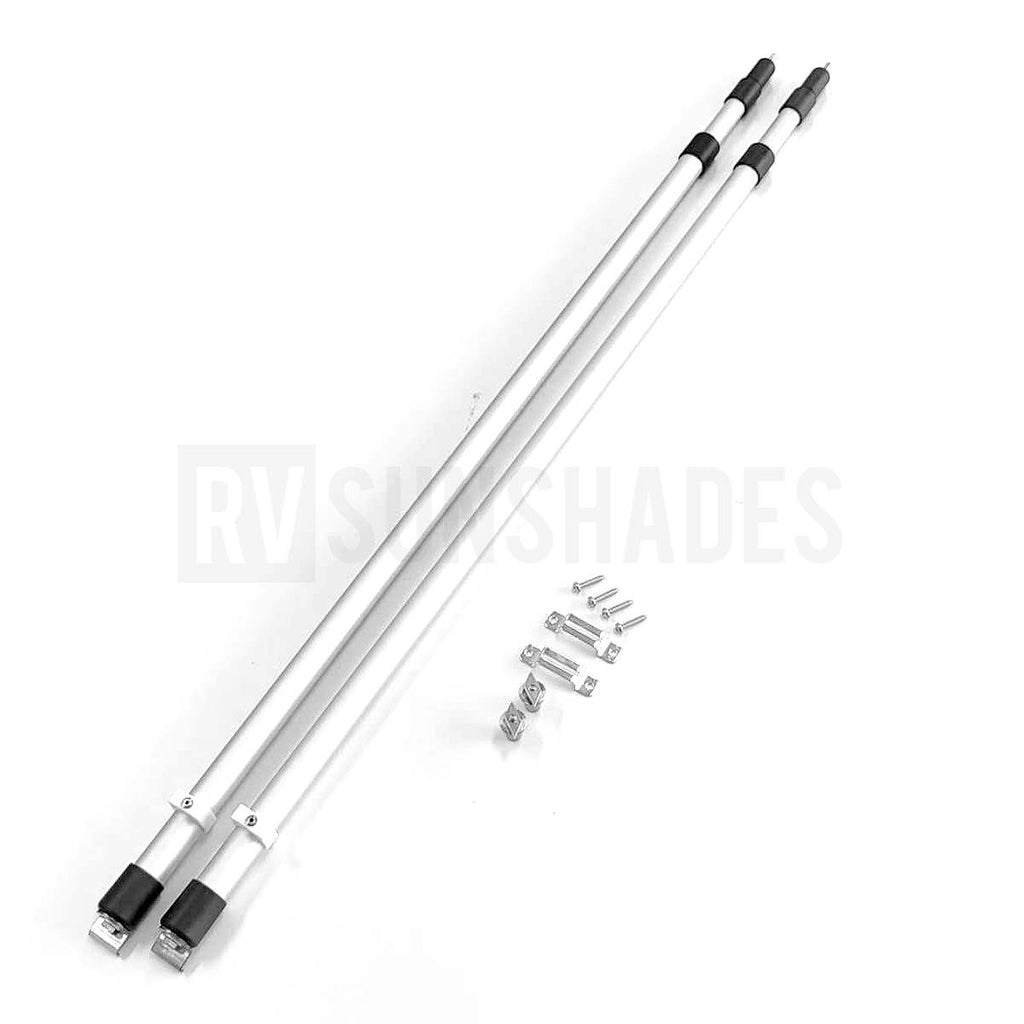

• one pair of end bars

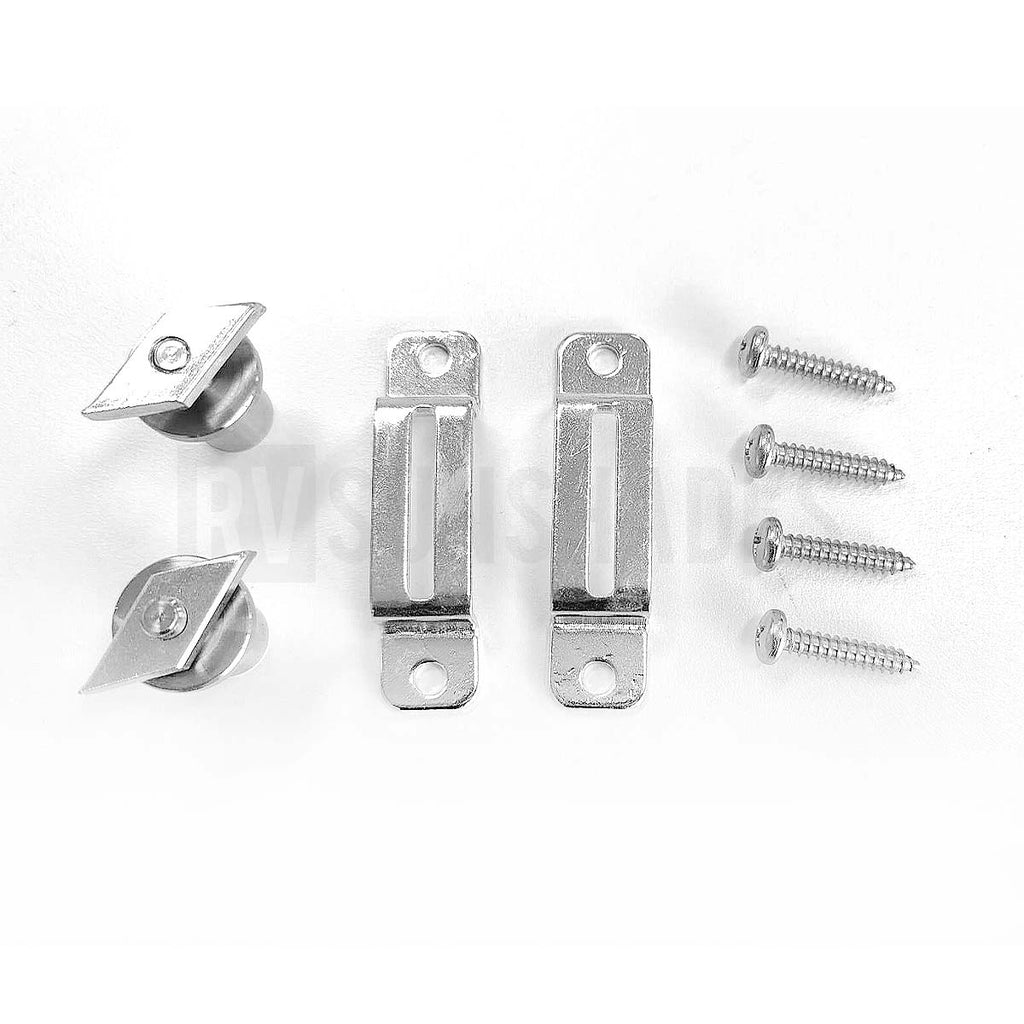

• brackets, sockets for box awning, screws



Superb Features:

1. lightweight anti-corrosion aluminium tubes structure

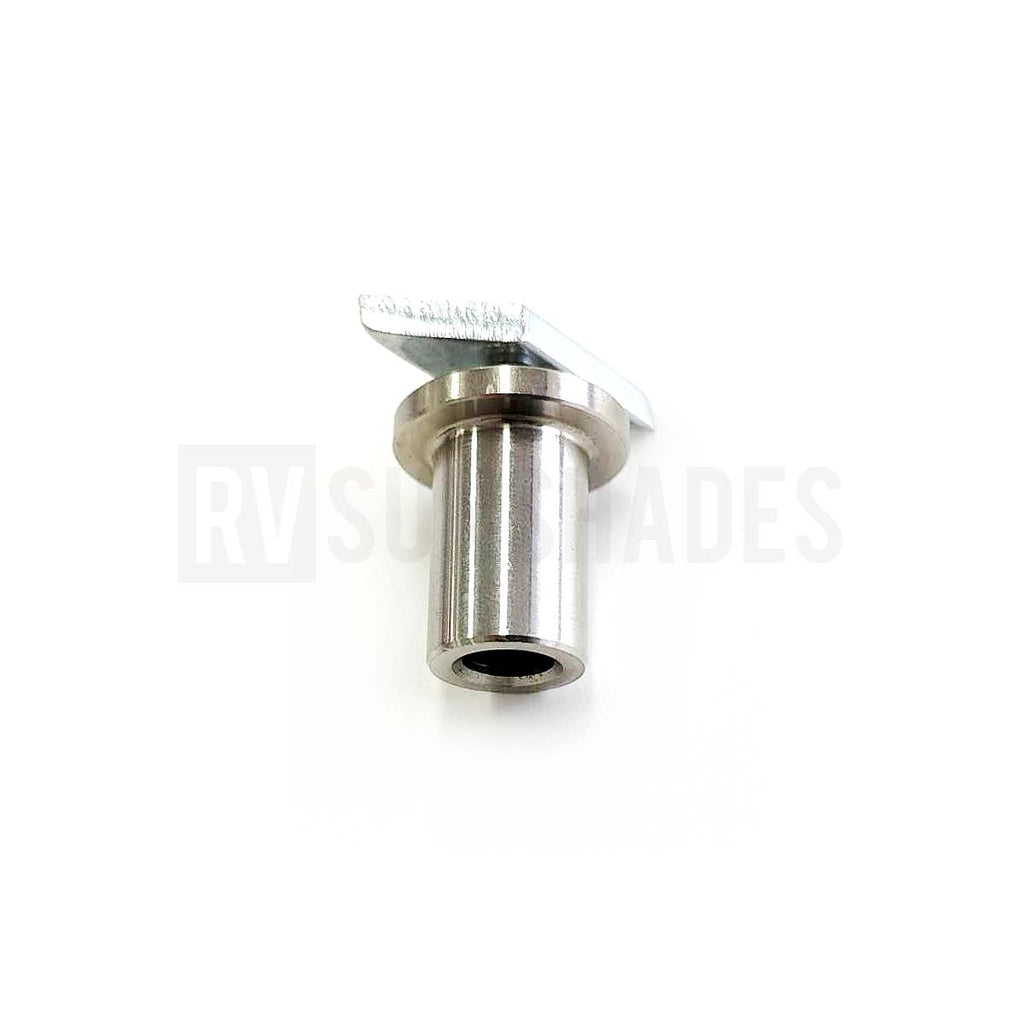

2. universal socket for box awning fitting
3. necessary fitting accessories are included

INSTALLATION FOR ELECTRIC AWNING:

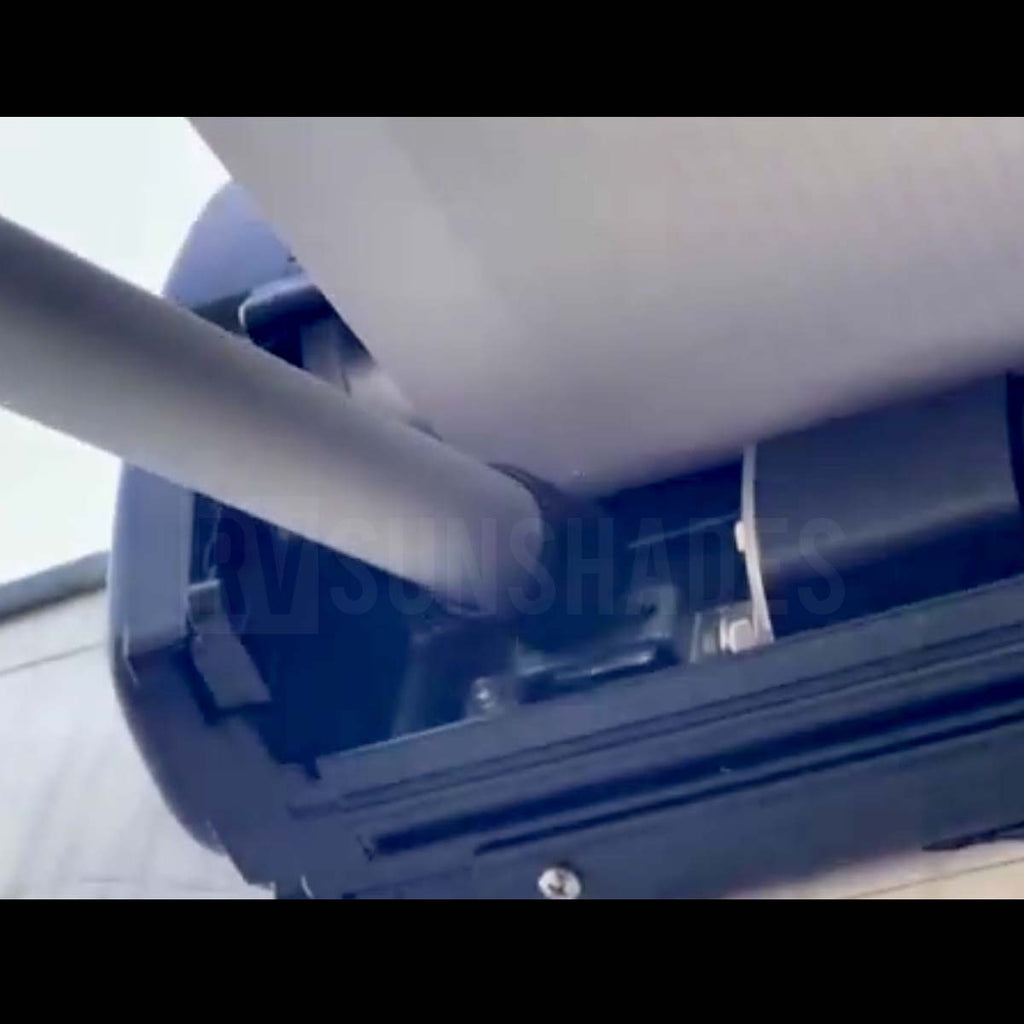

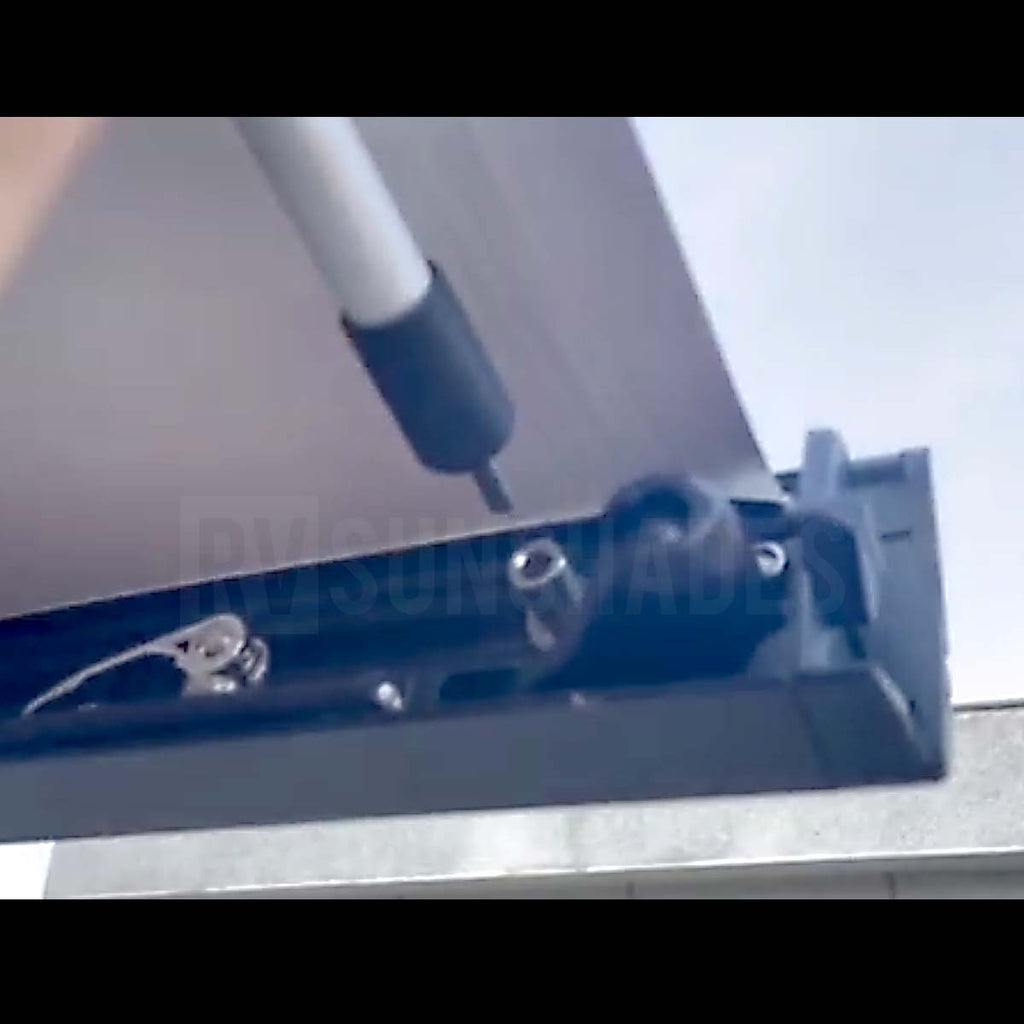

For an electric roll-out awning with zigzag arms, only caravan body brackets are required. [caption id="attachment_42839" align="alignnone" width="450"] Drill a 7-8mm hole in the aluminum barrel[/caption] [caption id="attachment_42840" align="alignnone" width="450"] Insert the pin into the hole[/caption] [caption id="attachment_42841" align="alignnone" width="450"] Spread and tension the bar against the bracket on the caravan body[/caption]

CLIMATE CONDITION WARNING:

The end wall shall be removed and stored away on windy days to avoid damaging the end bars or awning. The end bar is designed to be used in general weather conditions. Please note that damages resulting from wind are not under warranty cover.

IMPORTANT:

The end bars are designed purely for awnings without appropriate bars to hang end screens. They are not for structural application or used as structures for anti-flap clamps. Excessive force could damage the bar and such damage is not covered.

---

*images are for reference only

Caravan Awning End Bars for Box Awnings & Electric Rollout Awnings
